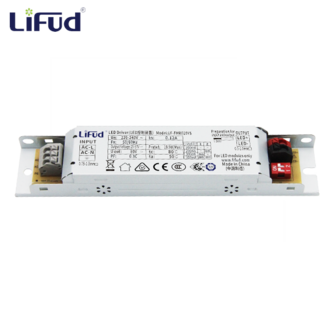

Lifud driver | Constant Current | Linear Non Dimmable | Fixed High Voltage Output/ Multi version Dip switch | 11-20W | 220-240V | 25-57V
In de bijlage vindt u uitgebreide informatie over deze driver van Lifud.
LED Flatlight: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.
| Type |
Linear Non Dim. Fixed High Voltage Output |
|
| Model |
LF-FMR020YS |
|
| Max Output |
Options: 11W, 14W, 17W, 20W |
|
| Dim. Functions |
Non Dimmable |
|
| Input Voltage |
220- 240V |
|
| Output Voltage |
25-57V |
|
| Output Current + Efficiency (Typical) |
11W: 200mA, 84% |
|
| |
14W: 250mA, 85% |
|
| |
17W: 300mA, 86% |
|
| |
20W: 350mA, 86% |
|
| PF (Typical) |
0.93 (230 Vac) |
|
| Working Temp. |
-30℃~+50℃ |
|
| Dimensions |
156*30*21 mm |
|
| Certificates |
CE, CB, ENEC, RCM, SAA |
|
| Warranty |
5 Years |
|
| |
|
|
| Type |
Linear Non Dim. Multiversion Dip Switch |
|
| Model |
LF-FMR020YS |
|
| Max Output |
20W |
|
| Dim. Functions |
Non Dimmable |
|
| Input Voltage |
220- 240V |
|
| Output Voltage |
25-57V |
|
| Output Current + Efficiency (Typical) |
200-350mA, 87% |
|
| PF (Typical) |
0.93 (230 Vac) |
|
| Working Temp. |
-30℃~+50℃ |
|
| Dimensions |
156*30*21 mm |
|
| Certificates |
CE, CB, ENEC, RCM, SAA |
|
| Warranty |
5 Years |
|
| |
|
|
| |
|
|
